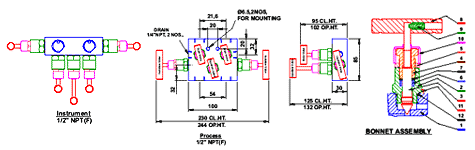

Stainless Steel Straight Type
Description
| Stainless Steel Straight Type |
| NO |
DESCRIPTION |
QTY |
MATERIAL |
| 1 |
BODY |
1 |
SS 316 |
| 2 |
BONNET |
1 |
SS 316 |
| 3 |
STEM |
1 |
SS 316 |
| 4 |
BONNET PUSHER |
1 |
SS316 |
| 5 |
LOCK NUT |
1 |
SS 316 |
| 6 |
PACKING |
1 |
TEFLON |
| 7 |
WASHER |
1 |
SS 316 |
| 8 |
HANDLE |
1 |
SS 304 |
| 9 |
GRUB SCREW |
1 |
SS |
| 10 |
DUST CAP |
1 |
PLASTIC |
| 11 |
LOCKING PIN |
1 |
SS 304 |
| 12 |
BONNET SEAL |
1 |
TEFLON |
| FEATURES : |
| 5 VALVE MANIFOLDS (STRAIGHT TYPE) |
- 5 valve manifolds are designed for remote or separate mounting. Connecting from process side 1/2″ NPT(F) and Instrument side 1/2″ NPT(F) Connecting system impulse lines and transmitters, having simple five valves configuration which allows for easy two block or Isolate, two, one Bleed or Vent valve calibration of a static pressure transmitter or gauge.
- Bleed/vent connection with s.s. plug will be provided on request.
- Approximate weight : xxx Kg (xxx Lbs.).
- Heat code traceability
|
| BONNET ASSEMBLY |
- Screwed bonnet design.
- Bonnet-back seated blow out proof.
- Spindle – Ground and thread rolled.
- Spindle tip-Non rotating tip shut off type – stellited, Regulating-stellited and soft seated.
- Bonnet pusher – silver plated for anti galling freezing for increased stem cycle life.
- Dust cap protects stem threads from externals contamination.
- Leak tight seal with low operating torque.
|
